SunPower XH-BCT-0500-100A/40mA Solid Core Current Transformer CTs
Specifications:
- Rated input current: 100A
- Rated output :40mA
- Accuracy ±0.2% 4.Insulation Voltage:5400V, CATIII 600V or CATIV 250V 5.Rated Frequency:50HZ or 60HZ; 6.Operating Temperature:-40ºC to +85ºC 7.UL2808 ,RoHS Compliant 8.Tensile force value: 9.08 kg(89N) for 1 minutes

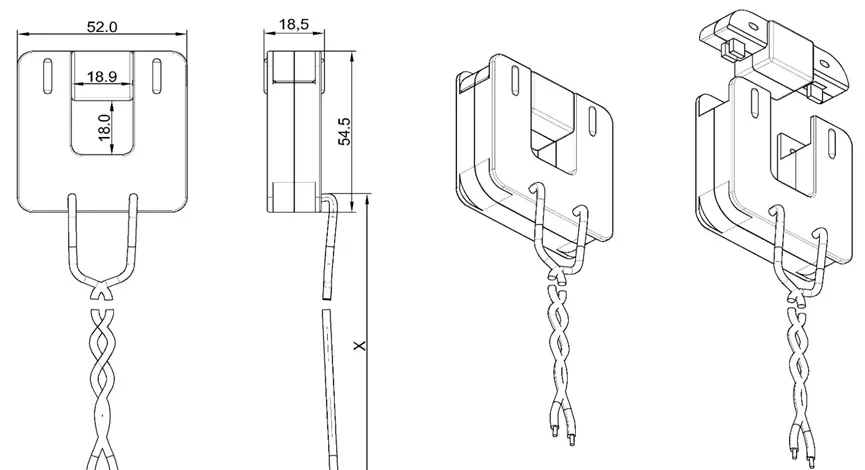

Product Structure Schematic:
