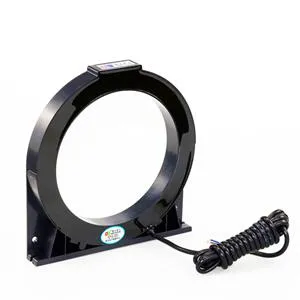

ZCT Zero phase current transformer

Specifications

Zero sequence current transformer

1.full size:45mm 80mm 100mm 150mm 200mm 2.High accuracy 3.OEM offered

Zero Sequence Current Transformer

Features:

• High accuracy: 0.2 class
• Window size: 45mm 80mm 100mm 150mm 200mm
• Max current system:200A-5000A
• Current ratio:0.3A/0.3mA 1A/1mA
• Epoxy resin casting encapsulation
• Good seismic resistance
• Convenient for installation
• High permeability magnetic material
• Wide measurement range
• legant appearance

Applications:

• Electric fire monitoring
• Leakage protection system
• Electromagnetic relaying protection
• Microcomputer protection
