Waterproof outdoor split core current transformer 36mm

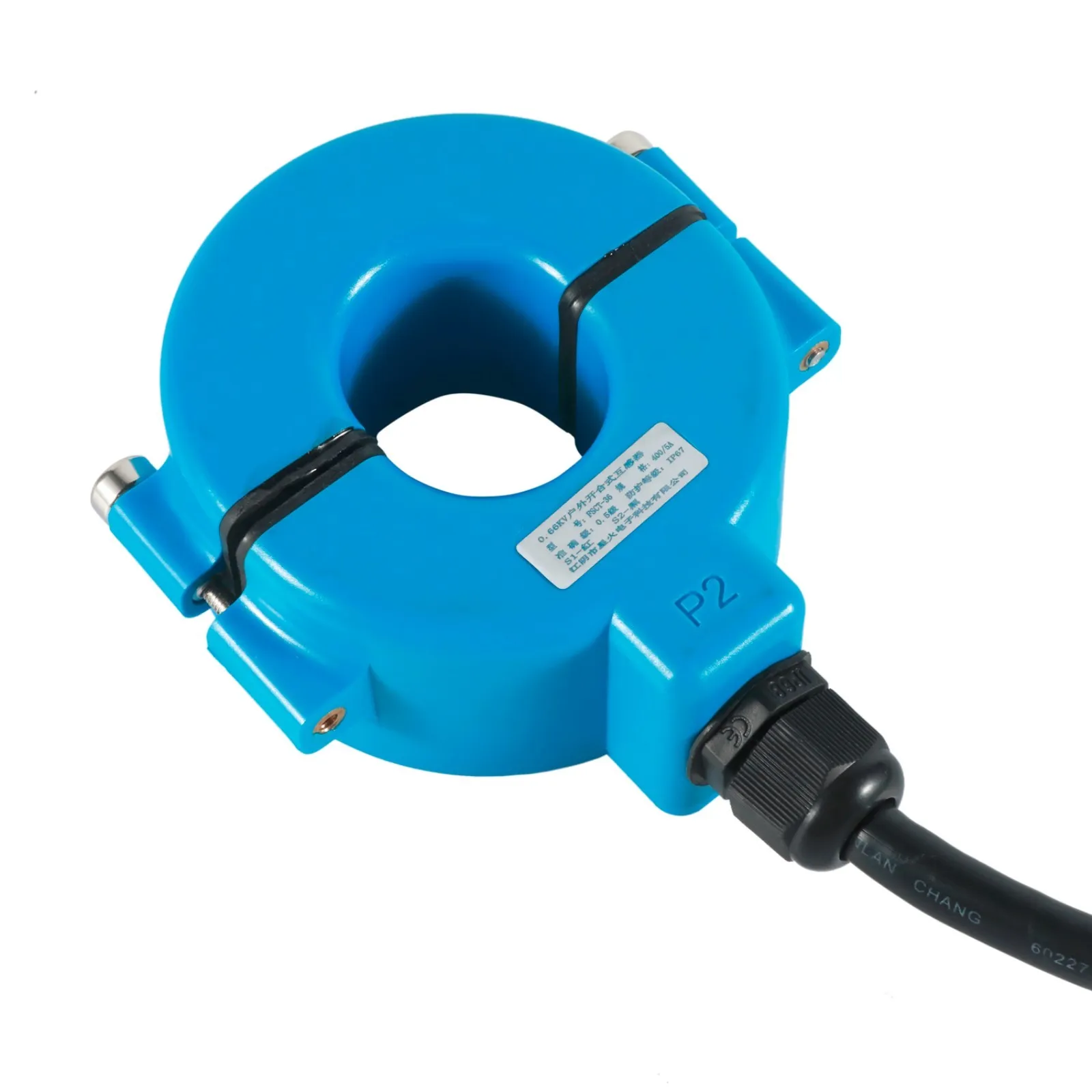

FSCT-36 Waterproof Split Core Current Transformer
FSCT-36 Waterproof current transformer is built with silicone steel core and is potted for outdoor use. In addition, it is designed for easy installation on ground potential conductors.
Specification
Window size : 36 mm
Operation Condition: Outdoor
Usage: Measurement
Insulating Medium: Common Insulating Materials
Accuracy: 0.5-1%
Standards: GB20840; IEC 61869
Safety Factor Rating :< 10
Rated Frequency: 50Hz or 60Hz
Environment: Outdoor
Rated Secondary Current: 5A or 1A
Secondary Winding Power Frequency Withst: 3kv/1min
Certificates:Waterproof certificate
Phase: Single
Export Markets: Global
| Model | FSCT-60 |
|---|---|
| Window size | 36mm |
| Rated primary current | 100-800 Arms |
| Rated output | 5A/1A |
| IP rating | IP 67 |
| Burden | 1.5VA – 5VA |
| Max current | 800 Arms |
| Turns | 100-3000T |
| Accuracy class | 0.5, 1.0 |
| Equipment maximum voltage | 0.66/0.72KV |
| Wire lead | 2*2.5mm² sheathed wire |
| Insulation strength | 3KVAC/min |
| Insulation impedance | DC500V/100MΩ |
| Rated frequency | 50-400HZ |
| Working temperature | -25℃ ~ 70℃ |
| Storage temperature | -30℃ ~ 80℃ |
