UL2808 Mini Split Core Current Sensor
0.333V or 3000:1 output

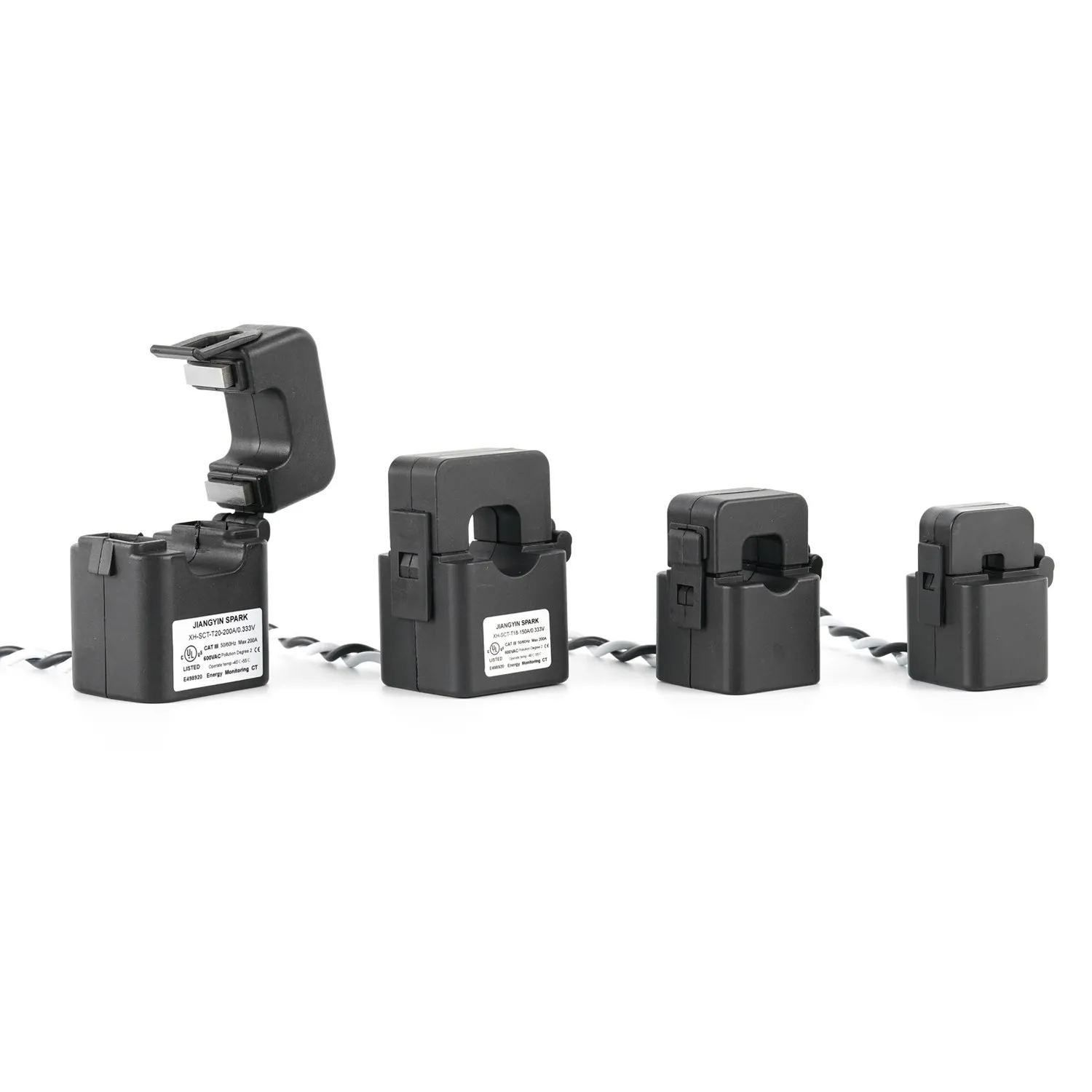

UL2808 (XOBA) Mini Split Core Current Sensor
The JIANGYIN SPARK series of UL 2808 (XOBA) split core current transformers are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.
一、SPECIFICATIONS ：
1、Rated Voltage：0.66KV
2、Insulation Voltage：5400V
CATIII 600V or CATIV 250V3、Rated Frequency：50HZ/60HZ
4、Operating Temperature：-35℃to 65℃
5、Flame resistance：UL94-V0
6、Leads : UL 1015 18awg
6、Certificates： UL2808 and IEC61010-1

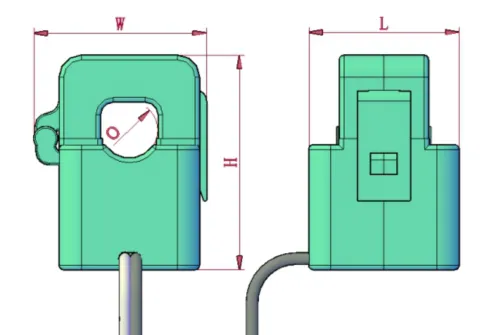

二、DIMENSIONS( mm )：
| Model | Rated Input (A) | Output | L (mm) | W (mm) | H (mm) | O (mm) |
|---|---|---|---|---|---|---|
| XH-SCT-T06 | 0.2-80 Aac | mA / 0.333 Vac / 0-3 Vac | 29.5 | 33.5 | 43 | 6 |
| XH-SCT-T12 | 0.2-120 Aac | mA / 0.333 Vac / 0-3 Vac | 34.5 | 40 | 49 | 12 |
| XH-SCT-T18 | 0.2-300 Aac | mA / 0.333 Vac / 0-3 Vac | 35.5 | 45.5 | 58 | 17 |
| XH-SCT-T20 | 0.2-300 Aac | mA / 0.333 Vac / 0-3 Vac | 35.9 | 56 | 69 | 20 |
