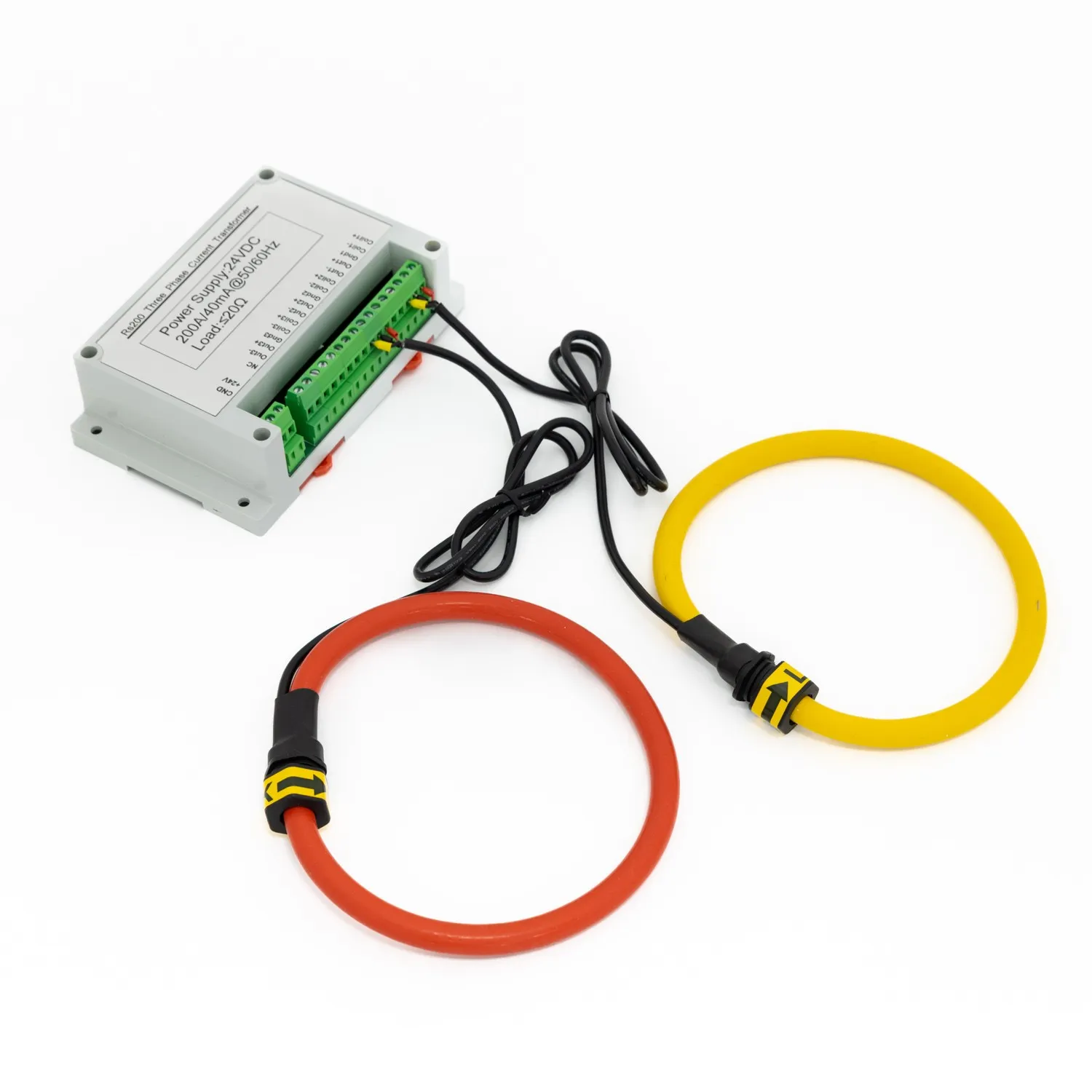

Two phase Rogowski Coil 200A/40mA UL list
200A/40mA ac output,2 phase ,20ohms
RS200 Rogowski coil transducer (40mAac) is based on the industrial demand and design a with high precision, high safety, low power consumption of the transmitter. The power meter can be in a variety of specifications、the instrument is connected.
| 项目 (中文/英文) | 参数值 | 单位 |
|---|---|---|
| 输入电流范围(AC) Current range(AC) | 200 | A |
| 测量电流范围 Measure range | 5% - 120% | % |
| 工频频率 Power frequency | 45-65 | Hz |
| 额定输出电流 Rated output current | 40mA | Aac |
| 负载 Load | ≤20 | Ω |
| 电源电压 Supply voltage | 12V@≥0.5A | V |
| 功耗电流 Power Consumption | <100 | mA |
| 失调温漂 Offset drift | @ -25℃ ~ +70℃ ≤±1 | mV/℃ |
| 精度 Accuracy | ≤1 | % |
| 线性度 Linearity | ≤1 | %FS |
| 响应时间 Response time | ≤20 | ms |
| 绝缘电压 Galvanic isolation | AC, 1min 10 | KV |
| 绝缘电阻 Isolation resistance | @ DC 500V 1000 | MΩ |
| 工作温度 (TA) Operating temperature | -25 to +55 | ℃ |
| 认证 Certificates | UL, CE, RoHS | - |
