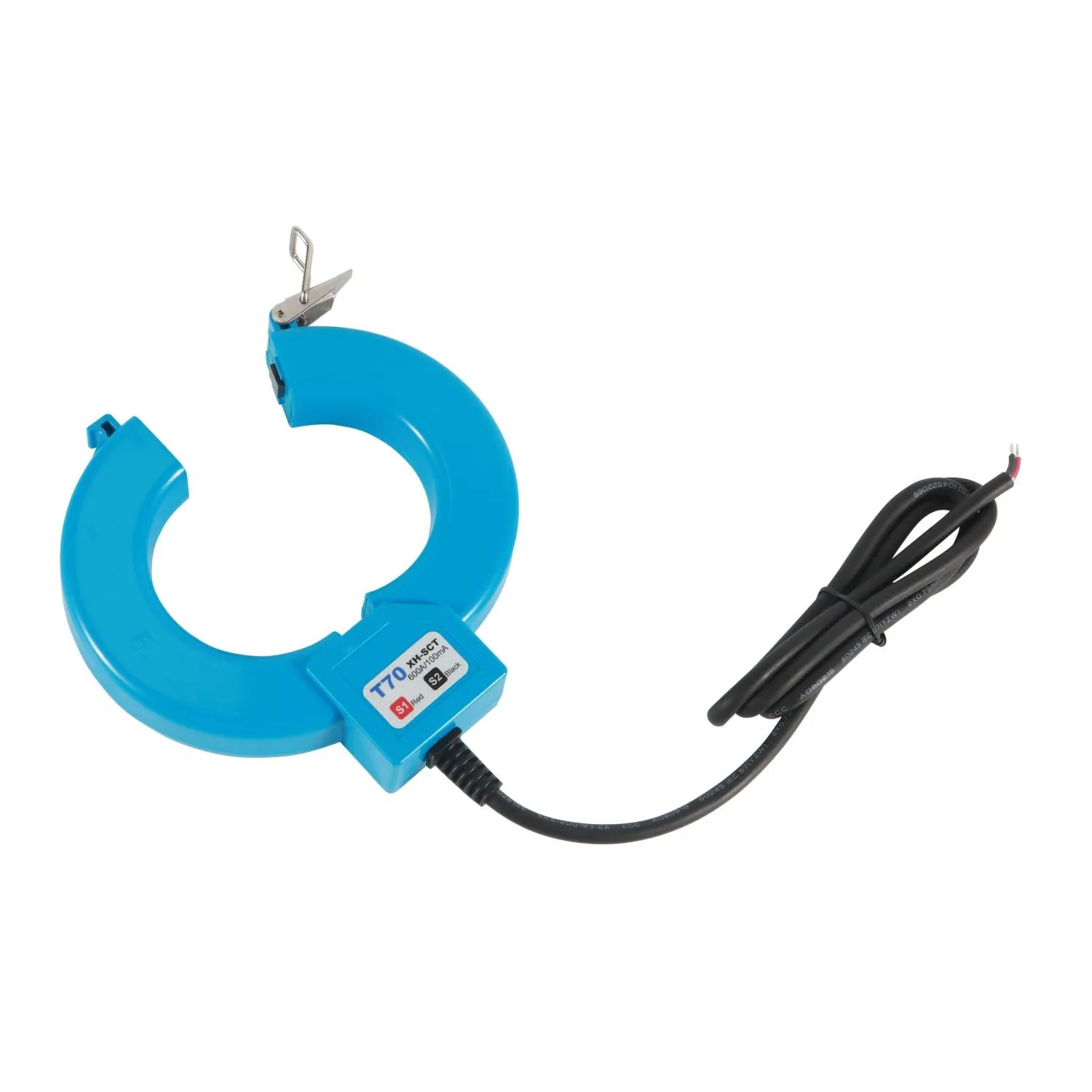

Split core current transformer XH-SCT-T70

Split-Core AC Current Transformer XH- SCT-T70

φ70mm Opening With 500 To 1000 Amp Rating

Description:

Jiangyin Spark XH-SCT-T70 Series split-core current transformer senses AC current from 500 to 1000 Amps passing through the center conductor.Split core CTs are designed for fast and easy installation.

Features:

Maximum continuous primary current 1000A AC Output: 1A,5A ,mA or mV at rated current Accuracy: 0.5% Maximum Primary Voltage: 5000Vac(Insulated Conductor) Frequency Range: 50 Hz to 400 Hz Operating Temperature: -25 Cto 60 C. CE and RoHS compliant Output and leads can be customized

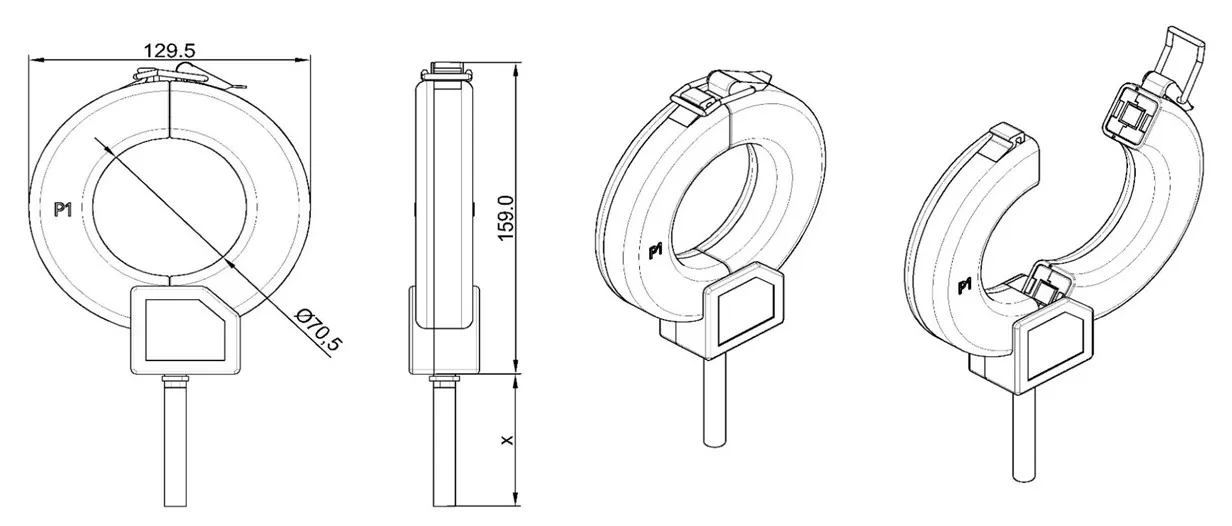

Dimensions：mm
