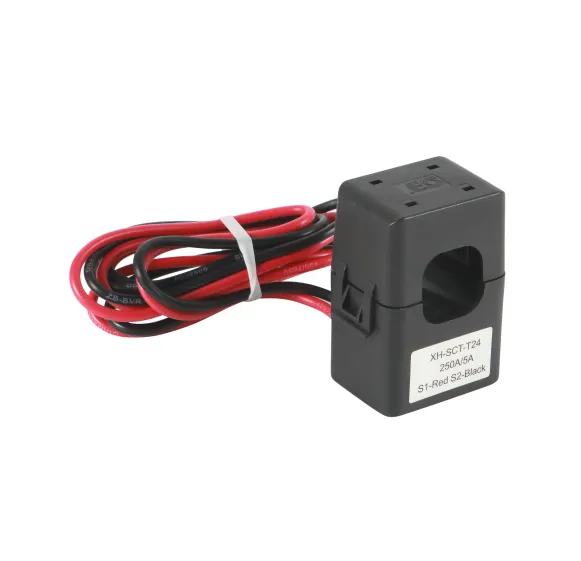

Split Core Current Transformer XH-SCT-T24 1A/5A output

Specification:

• Maximum continuous primary current 50A to 400AAC
• Output:1A or 5A at rated current
• Accuracy: ± 1% 2VAIndoor or Outdoor use,Outdoor type with rubber cover
• Insulation Voltage: 600VAC
• Maximum Primary Voltage: 5000VAC(Insulated Conductor)
• Phase angle: Less than 2 degrees at 50% of rated current
• Frequency Range: 50 Hz to 400 Hz
• Operating Temperature: -15C to 60C.
• Leads: 1.0 m cable
• CE recognized, and RoHS compliant
• Output and leads can be customized
