Split Core Current Transformer XH-SCT-T16

image info

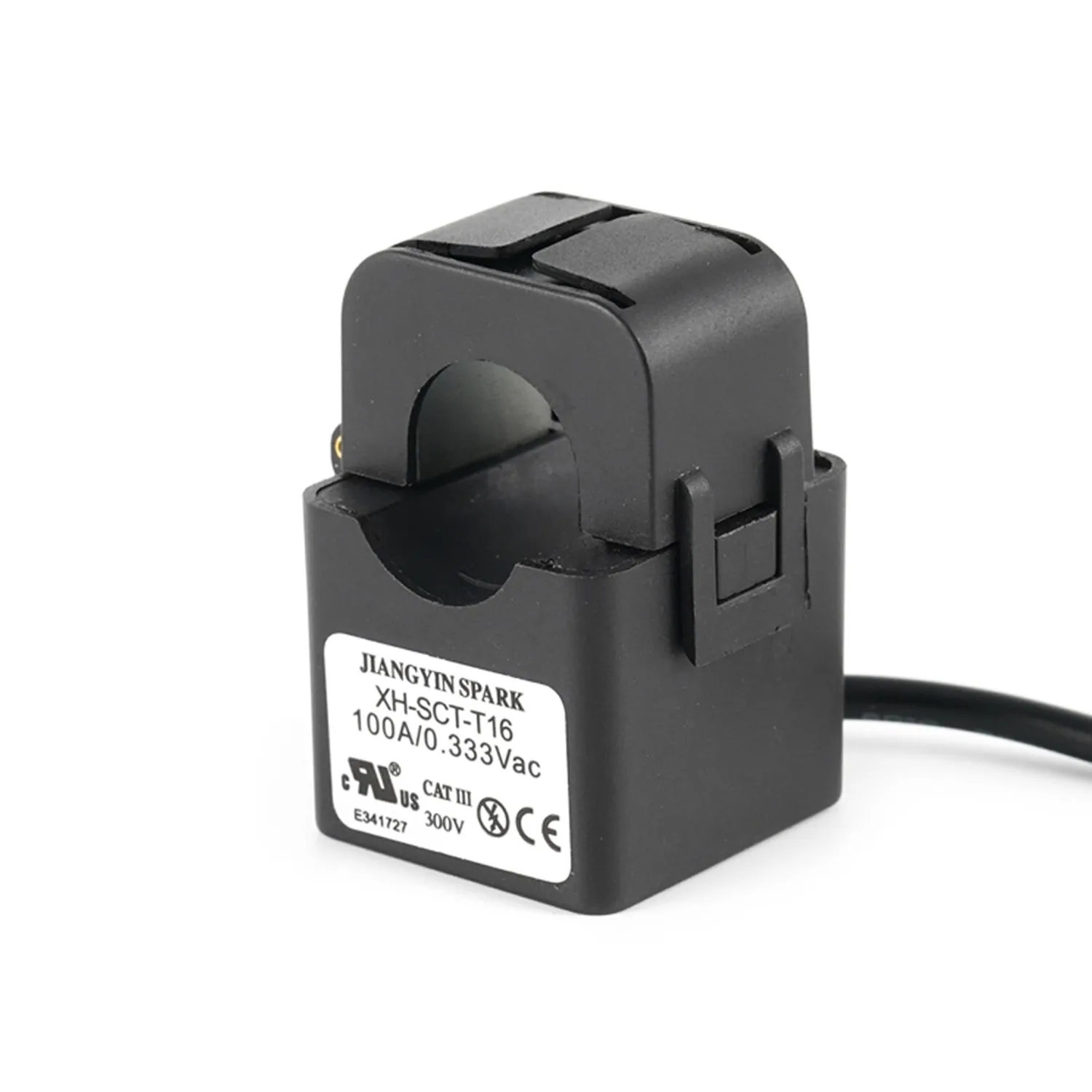

Split-Core Current Transformer XH- SCT-T16-100A/33.3mA, 3000：1

φ16mm Opening With 50 To 120 Amp Rating

Description:

Split-core current transformer XH-SCT-T16 senses AC current from 50 to 120 Amps passing through the center conductor.Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Features:

  • Maximum continuous primary current 100 A AC
  • Output: 33.3mA
  • Current Ratio: 3000: 1
  • Maximum Primary Voltage: 5000Vac(Insulated Conductor)
  • Phase angle: Less than 2 degrees at 50% of rated current
  • Frequency Range: 50 Hz to 400 Hz
  • Accuracy: ± 1% from 5% to 120% of rated current
  • Operating Temperature: -15 Cto 60 C.
  • Insulation Voltage: 600Vac
  • Leads: UL1015 24AWG twist Black &White
  • UL , CE recognized, and RoHS compliant
  • Output and leads can be customized

Applications:

  • Sub-Metering Accurate Measurement
  • PV Inverters
  • PV monitoring

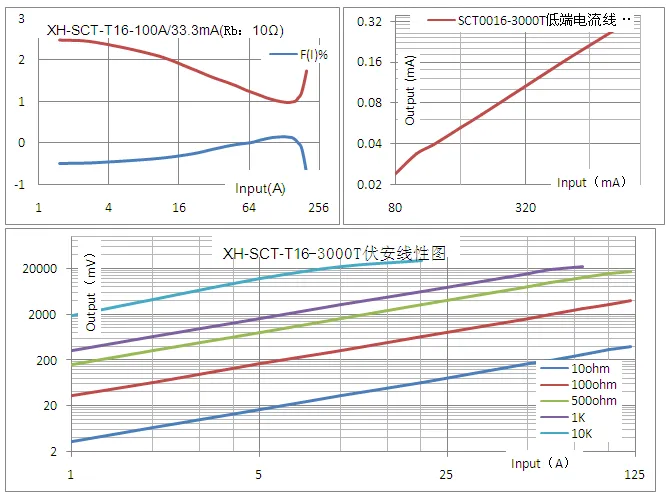

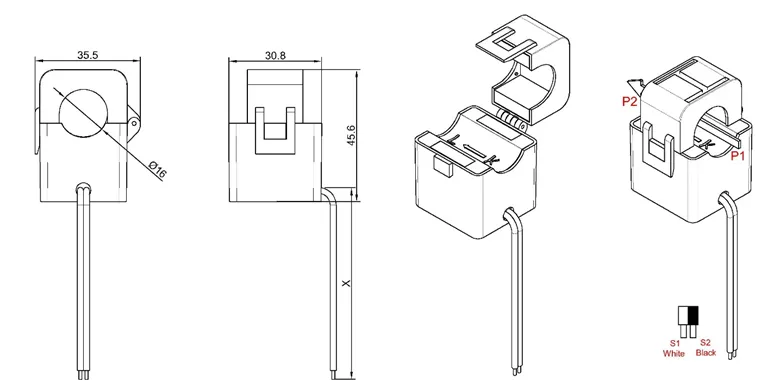

Dimensions(mm):
