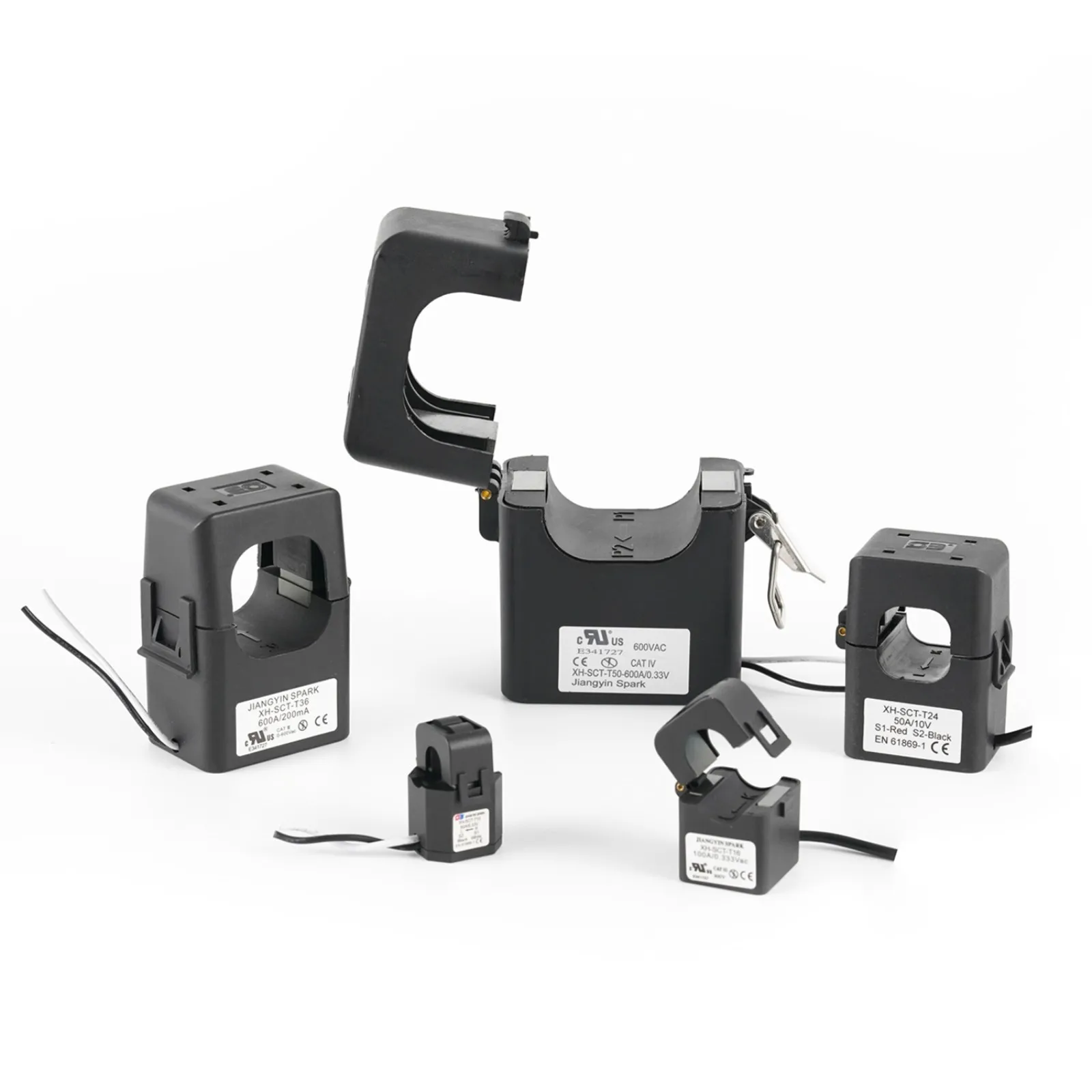

Split Core(Clip on) Current Sensor
Split Core (Clip on) Current Sensor
The JIANGYIN SPARK series of split core current sensors are designed for fast and easy installation. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor.This method permits a safer,easy and portable current measurement.
Features:
Small size, low cost High secondary turns Secure locking hinge
Specifications:
Maximum continuous primary current 1A to 600AAc Current Ratio: 500:1 ,1000:1 ,2000:1 ,2500:1 ,3000: 1 Output: mA or 0.333Vac to 3.53Vac Accuracy: ± 1% from 5% to 120% of rated current Insulation Voltage: 600Vac Maximum Primary Voltage: 5000Vac(Insulated Conductor) Phase angle: Less than 2 degrees at 50% of rated current Frequency Range: 50 Hz to 400 Hz Operating Temperature: -15C to 60C. Leads: 4Foot(105cm), UL 1015, Twisted Pair, 24AWG CE ,UL recognized, and RoHS compliant Output and leads can be customized
Applications:
PV Inverters,PV monitoring,Energy storage solutions Smart energy Digital Fault Recorders Smart Grid Application Features ，Load Center Three Phase Balance Control In-Factory Display ，In-Home Display Inverters for Solar & Wind Turbine Systems Power Measurement Device For PLC
| Model | Rated Input (A) | Output | ID (mm) | L(mm) | W(mm) | H(mm) |
|---|---|---|---|---|---|---|

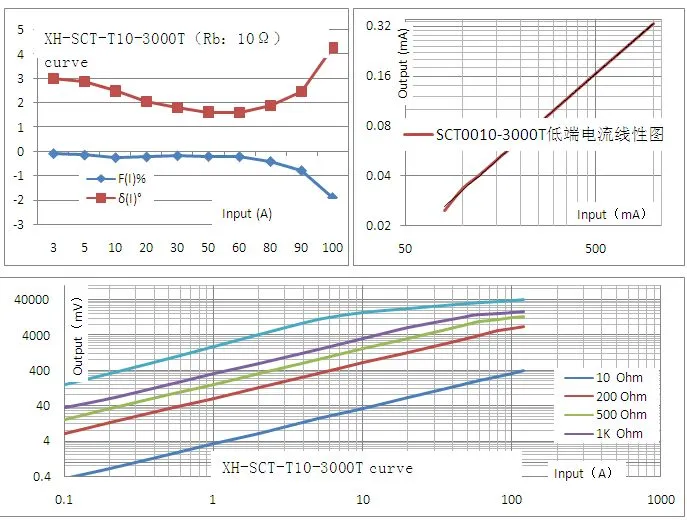

| XH-SCT-T10 | 1 - 80Aac | mA/0.333Vac /0-3 Vac /1A/5A | 10 | 28.5 | 26.5 | 39.8 |
| XH-SCT-T16 | 1 - 120Aac | mA/0.333Vac /0-3 Vac /1A/5A | 16 | 35.5 | 30.8 | 45.6 |
| XH-SCT-T24 | 5 - 300Aac | mA/0.333Vac /0-3 Vac /1A/5A | 24 | 56.5 | 36.5 | 68.5 |
| XH-SCT-T36 | 5 - 500Aac | mA/0.333Vac /0-3 Vac /1A/5A | 36 | 68.0 | 41.8 | 86.0 |
