Outdoor waterproof Split Core Current Transformer

image info

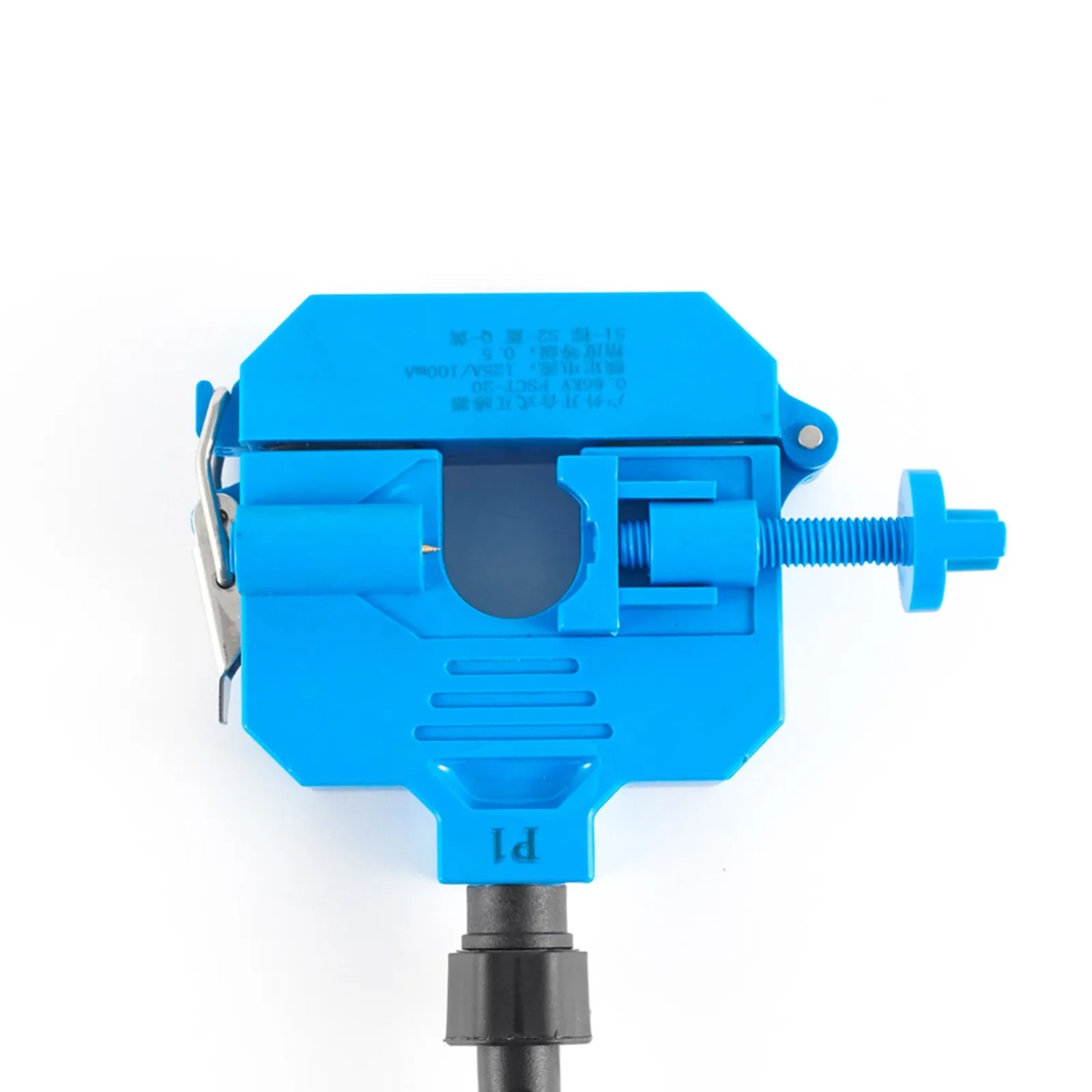

Outdoor Split Core Current Transformer XH- FSCT-20

Ļ†20mm Opening With 10 To 600 Amp Rating

Description:

Jiangyin Spark XH-FSCT-20 is Outdoor Waterproof Split Core Current Transformer

Specifications:

ModelXH-FSCT-20
Inner Diameter20mm
Rated Primary Current10-600Amp
Rated secondary outputmA, mV or 1A
Max Current1000Arms
IP classIP 57
Turns100-3000T
Accuracy Class0.5 , 1.0
Insulation strength3KVVAC/min
Insulation impedanceDC500V/100MĪ©
Rated frequency50-400HZ
StandardsGB 20840 (IEC 61869), GB4208
Work voltage0.66/0.72KV
Working temperature-25ā„ƒ ~ 50ā„ƒ
Storage temperature-30ā„ƒ ~ 90ā„ƒ
